Data Sheet

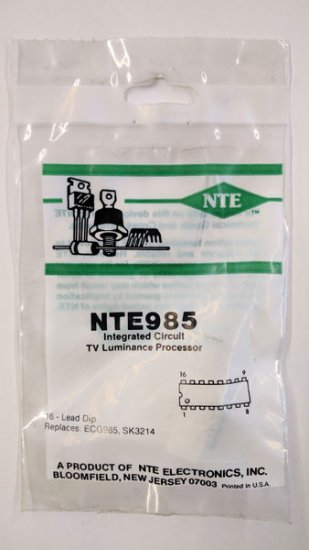

NTE985
Integrated Circuit
TV Luminance Processor

Description:
The NTE985is a monolithic silicon integrated circuit that performs the luminance processing functions
of amplification; contrast, brightness and peaking control; blanking; and black-level clamping.

Features:
Black-Level Clamping
Linear DC Controls for Brightness, Contrast and Peaking
Horizontal and Vertical Blanking
“Hermetic Chip” Construction
Silicon Nitride Passivated
Platinum Silicide Ohmic Contacts
Operates with Standard or Tapped Delay Line

Replaces:
ECG985, SK3214

Additional Model #'s
76-NTE985
NTE985

UPC: 768249376712
