Data Sheet

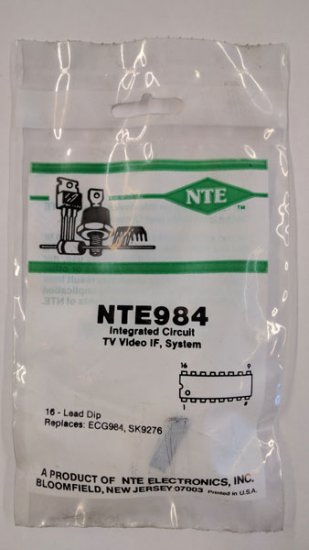

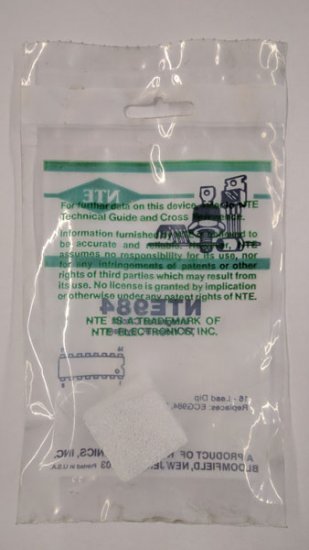

NTE984
Integrated Circuit
TV Video IF System

Description:
The NTE984 is a monolithic integrated circuit in a 16-Lead DIP type package designed to perform
IF amplification, video detection, and video-amplifier functions in color and monochrome TV receivers.

Features:
Improved AGC, Fast Response, Sample and Hold Keyed
High Gain Wideband IF Amplifiers
Delayed AGC Output for Tuner
Gain Reduction with Excellent Stability
Linear Video Detector
Video Amplifier
Low Noise
Internal Shunt Regulator
For Color of Monochrome

Replaces:
ECG984, SK9276, TCG984, 141134, 1465316

Additional Model #'s
76-NTE984
NTE984

UPC: 768249376613
