Data Sheet

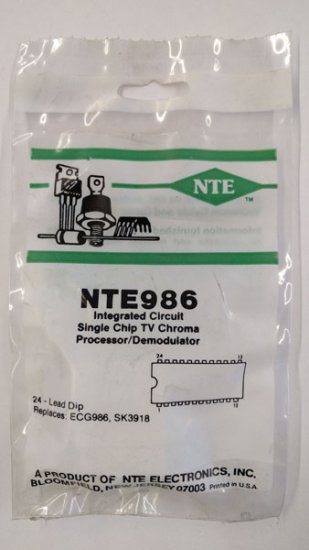

NTE986
Integrated Circuit-Linear
Single Chip TV Chroma Processor/Demodulator

Description:
The NTE986 is a monolithic silicon integrated circuit in a 24-Lead DIP type package that performs
the complete chroma processor and demodulating functions for color TV. This simple chip contains
all the features of the NTE797 chroma processor and the NTE1176 chroma demodulator.

Features:
Phase Locked Subcarrier Regeneration Utilizing Sample and Hold Techniques.
All Chroma Processing and Demodulating Circuitry on a Single Chip
Supplementary ACC with Overload Detector to Prevent Over Saturation of the Picture Tube
Linear DC Controls for Chroma Gain and Tint
Dynamic “Flesh Correction” - Corrects Green and Purple Flesh Colors Without Affecting Primary
Colors.
Balanced Chroma Demodulators with Low Output Impedance for Direct Coupling
Internal RF Filtering
Requires Few External Components
Low System Dissipation - 0.5W Nominal

Replaces:
ECG986, SK3918, TCG986

Additional Model #'s
76-NTE986
NTE986

UPC: 768249376811
