Data Sheet

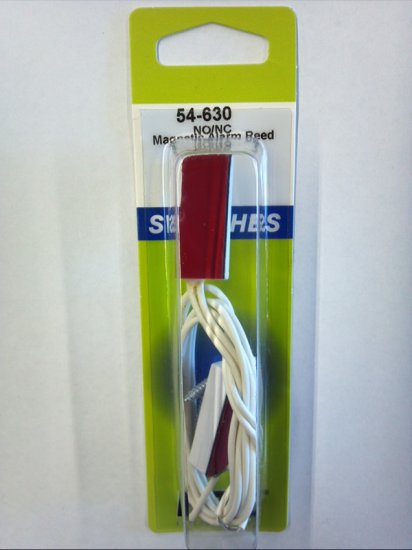

SWITCH WHITE MAGNETIC ALARM REED SPST-NO
18" LEADS ADHESIVE AND SCREW MOUNT 2 PIECE UNIT

Features:
Mini Stick-On Contact with Flange Center Leads
18” Leads
Adhesive and Screw Mount
Standard Gap: 1” (25mm)

Specifications:
Contact Rating: 10W/VA
Contact Resistance: 150 milliohms.
Contact Material: Ruthenium Oxide over Palladium
Switching Voltage: 200 VDC max.
Switching Current: 500mA max.
Insulation Resistance: 10 gigohms
Shock Resistance: 30G for 11mS
Vibration Resistance: 20G (10 to 1000Hz)
Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA)
Terminal Type: Wire Leads
Mounting Hole: 0.200” (5mm)

Additional Model #'s
75-54-630
75-54630
54-630
54630

UPC: 768249120445
