Data Sheet

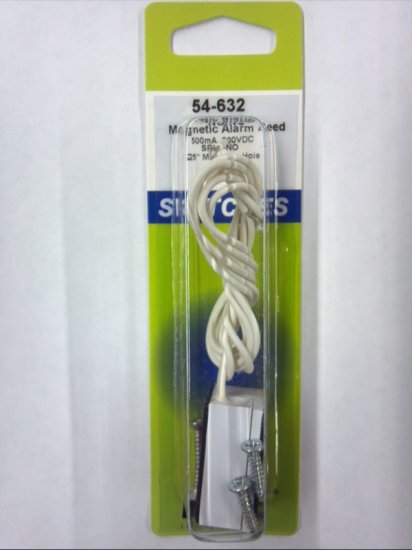

SWITCH WHITE MAGNETIC ALARM REED
SPST-NO 18 INCH LEADS ADHESIVE AND SCREW MOUNT 2 PIECE UNIT

Specifications
Contact Rating: 10W/VA
Contact Resistance: 150 milliohms.
Contact Material: Ruthenium Oxide over Palladium
Switching Voltage: 200 VDC max.
Switching Current: 500mA max.
Insulation Resistance: 10 gigohms
Shock Resistance: 30G for 11mS
Vibration Resistance: 20G (10 to 1000Hz)
Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA)
Operating Gap: 0.748” (19mm) min.
Terminal Type: Wire Leads
Mounting Hole: 0.250” (6.35mm)

Additional Model #'s
75-54-632
75-54632
54-632
54632

UPC: 768249120643
