Data Sheet

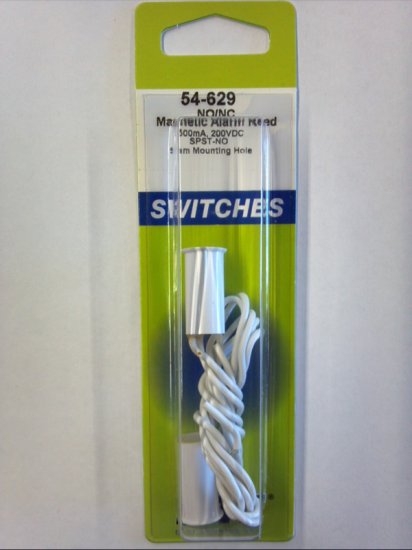

SWITCH RESESSED MOUNT MAGNETIC ALARM REED 10W/VA SPST-NO
18 INCH WIRE LEADS 9MM DIA PRESS FIT

Features:
3/8” (9mm) Dia with 18” Long Wire Leads
Easy & Quick Installation
Longer Length
Operate Gap 3/4” (19mm) min.

Specifications:
Contact Rating: 10W/VA
Contact Resistance: 150 milliohms.
Contact Material: Ruthenium Oxide over Palladium
Switching Voltage: 200 VDC max.
Switching Current: 500mA max.
Insulation Resistance: 10 gigohms
Shock Resistance: 30G for 11mS
Vibration Resistance: 20G (10 to 1000Hz)
Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA)
Operating Gap: 0.748” (19mm) min.
Terminal Type: Wire Leads
Mounting Hole: 0.375” (9mm)

Additional Model #'s
75-54-629
75-54629
54-629
54629

UPC: 768249120346
