Data Sheet

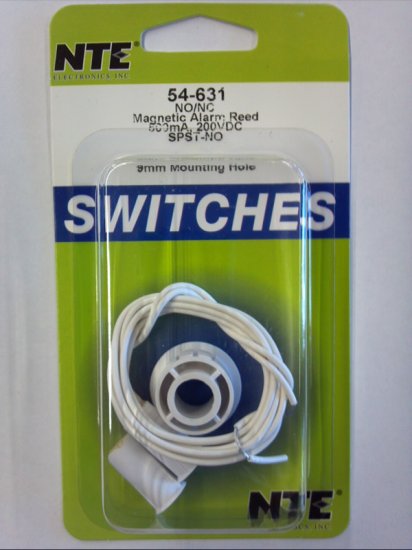

SWITCH RESESSED MOUNT MAGNETIC ALARM REED
10W/VA SPST-NO 18" WIRE LEADS 9MM DIA PRESS FIT

Features:
3/8” (9mm) Dia with Adaptor Holder
Wide Operating Gap 3/4” (19mm) min.
Easy & Quick Installation
3/4” Adaptor/Holder

Specifications:
Contact Rating: 10W/VA
Contact Resistance: 150 milliohms.
Contact Material: Ruthenium Oxide over Palladium
Switching Voltage: 200 VDC max.
Switching Current: 500mA max.
Insulation Resistance: 10 gigohms
Shock Resistance: 30G for 11mS
Vibration Resistance: 20G (10 to 1000Hz)
Life Expectancy: 20,000,000 cycles (resistive load, 12VDC, 250mA)
Operating Gap: 0.748” (19mm) min.
Terminal Type: Wire Leads
Mounting Hole: 0.375” (9mm)

Additional Model #'s
75-54-631
75-54631
54-631
54631

UPC: 768249120544
