Data Sheet

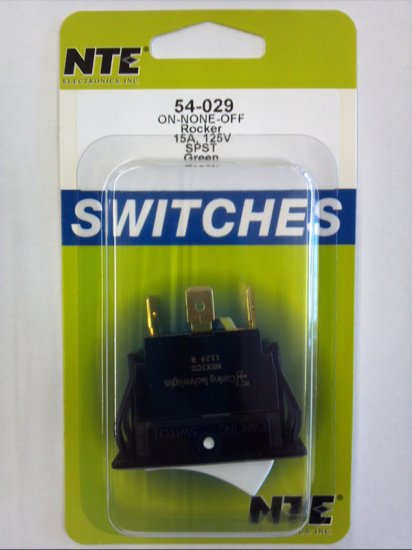

ROCKER SWITCH ILLUMINATED SNAP-IN
SPST 15A 125VAC ON-NONE-OFF 18V INCANDESCENT W/GREEN LENS W/0.25" TERMINALS

Specifications:
Current Rating: 15A 125VAC, 10A 250VAC, 1/2 HP 125−250VAC
Lamp Voltage: 125V Neon (54-053), 18V Incandescent (54-029)
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 50,000 cycles
Mechanical Life: 100,000 cycles
Terminal Type: .250” Tab Q.C.
Mounting Hole: 1.450" (36.83mm) x 0.830" (21.08mm)

Additional Model #'s
75-54-029
75-54029
54-029
54029

UPC: 768249108641
