Data Sheet

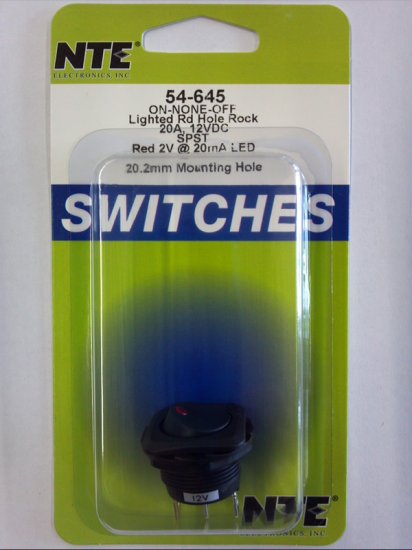

ROCKER SWITCH SPST ON-NONE-OFF ILLUMINATED RED DOT
20A 12VDC SQUARE FACE ROUND HOLE 0.187" INCH TERM

Specifications:
Current Rating: 20A 12VDC
Lamp Voltage: 2V @ 20mA LED (DC)
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -13 to +185 F (-25 to +85 C)
Electrical Life: 6000 cycles (min.)
Mechanical Life: 100,000 cycles (min.)
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: 0.795" (20.2mm)

Additional Model #'s
75-54-645
75-54645
54-645
54645

UPC: 768249285946
