Data Sheet

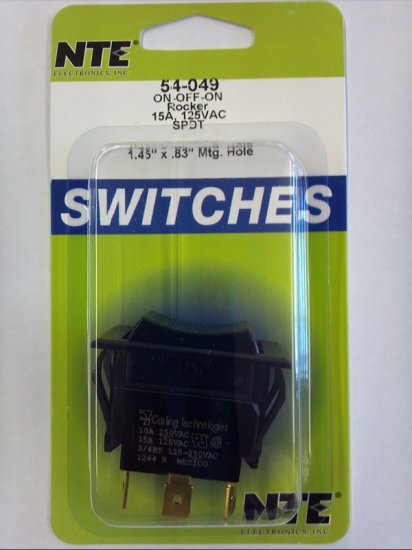

ROCKER SWITCH SPDT ON-OFF-ON 15A 125VAC SNAP-IN

Features:
AC Rated, Also Suitable for Low Voltage DC Applications

Specifications:
Current Rating: 15A 125VAC, 10A 250VAC, 3/4 HP 125-250VAC
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 50,000 cycles
Mechanical Life: 100,000 cycles (min.)
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: 1.450" (36.83mm) x 0.830" (21.08mm)

Additional Model #'s
75-54-049
75-54049
54-049
54049

UPC: 768249070245
