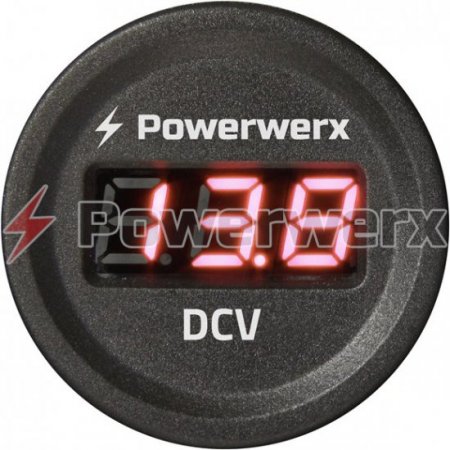

Panel mount volt meter features a bright easy to read red LED display. Monitor DC voltage from 5-30 VDC. Fits standard 1-1/8" diameter hole. Rear mounted F2 quick disconnect tabs.
Monitor and display current battery voltage. Rear mounted F2 quick disconnect tabs. Can be mounted in Powerwerx optional PanelPod1, PanelPod2, PanelPod3 housings or standard 1-1/8" diameter hole.
Display: Red LED
Voltage Range: 5-30 VDC
Current Draw: 8 mA
Rear Connections: (2) 0.25" blade quick disconnect tabs
Mounting: 1 1/8" diameter hole
Rear housing depth: 7/8" (with quick disconnect tabs)
Optional Mounting: PanelPod1, PanelPod2, PanelPod3, PanelPlate1, PlanelPlate2, PanelPlate3 and Panelplate4
Additional Model #'s
78-PANELDVM
PANELDVM
UPC: 840128902332
