Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC

Model: PANELSW-BLUE
Availability : Out of Stock
  • Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC
  • Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC
  • Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC
  • Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC
  • Powerwerx Panel Mount Blue Switch On-Off SPST 15A 12VDC
$12.99
Current Reviews: 0 Add Your Review
 Sold Out

Powerwerx Panel Mount Blue Switch for 12V Systems

Easy to install backlit panel mount On/Off DC power switch. Available in red and blue colors. Rated at 15A @ 12VDC. Includes optional water resistant cover. Rear mounted F2 faston blade type connections. Fits standard 1-1/8" diameter hole.

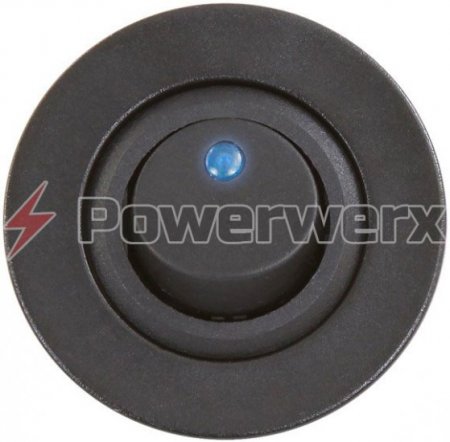

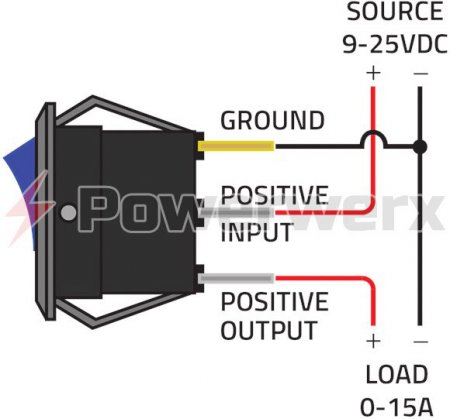

Switches illuminates in the ON position. Rated at 15A @ 12VDC continuous. DC power input via (3) rear mounted F2 faston tab (blade type) connections.

Switch separates from panel housing and can be mounted separately or together. Fits Powerwerx optional PanelPod1, PanelPod2, PanelPod3 housings, Two, Three or Four Hole Panel Mounting Plates or standard 1-1/8" diameter hole.

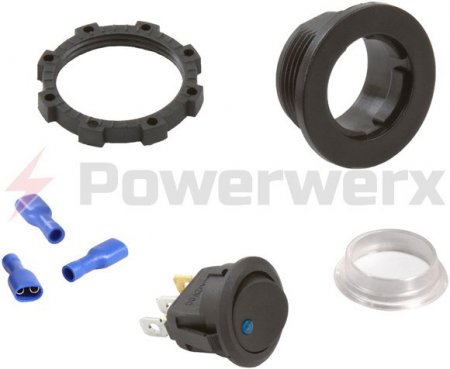

Includes lighted switch, panel mount switch housing, rear threaded nut, waterproof switch cover (optional) and (3) blade type connectors.

Current Draw: 15mA

Rear housing depth: 15/16" (with quick disconnect tabs)

Additional Model #'s
75-PANELSW-BLUE
75-PANELSWBLUE
PANELSW-BLUE
PANELSWBLUE

UPC: 840128902516
