Data Sheet

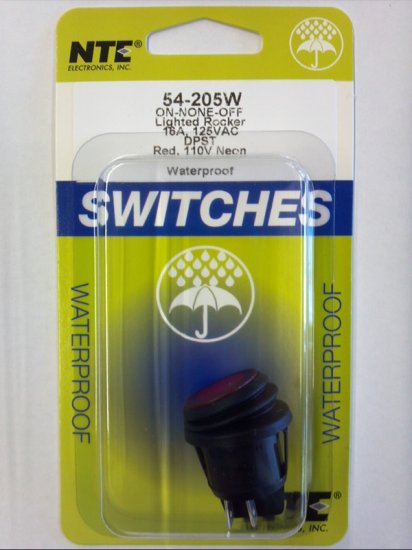

ROCKER SWITCH WATERPROOF ILLUMINATED ROUND
DPST 16A ON-NONE-OFF RED 110V NEON LAMP 0.187" QC TERMINALS

Specifications:
Current Rating: 16A 125VAC, 10A 250VAC
Lamp Voltage: 110V Neon (AC) & 12V LED (DC)
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 10,000 cycles
Mechanical Life: 50,000 cycles at full load
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: 0.795" (20.2mm)

Additional Model #'s
75-54-205W
75-54205W
54-205W
54205W

UPC: 768249132349
