Data Sheet

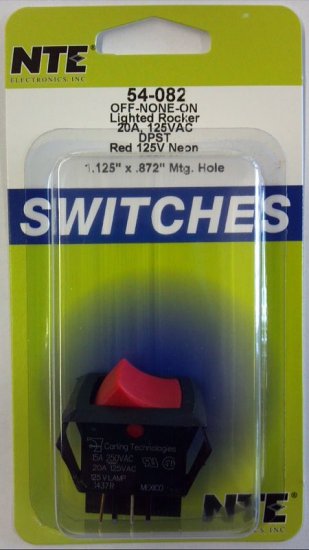

ROCKER SWITCH ILLUMINATED DPST MINIATURE SNAP-IN
DPST OFF-NONE-ON 20A 125VAC RED LENS 125VAC NEON 0.250" QC

Specifications:
Current Rating: 20A 125VAC, 15A 250VAC
Lamp Voltage: 125V Neon
Insulation Resistance: 100 Megohms (min.)
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 50,000 cycles
Mechanical Life: 100,000 cycles
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: 1.125" (28.58mm) x 1.000" (25.4mm)

Additional Model #'s
75-54-082
75-54082
54-082
54082

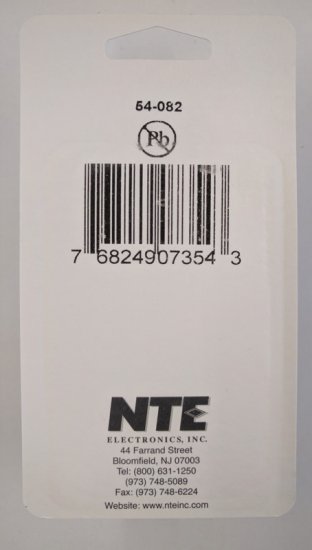

UPC: 768249073543
