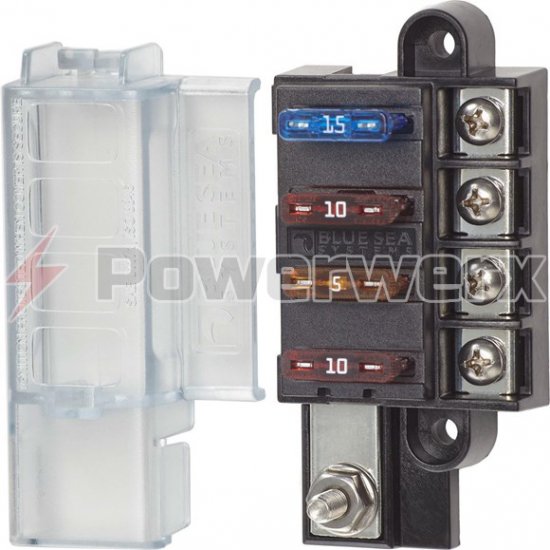

Provides surface mount circuit protection for ATO/ATC fuses in a compact footprint. Single side design allows wire entry from one side to minimize footprint. 100 Amp max per block, 30 Amp max per circuit. Includes clear snap-in cover. Fuses not included.

Meets ISO 8846 and SAE J1171 for use in gasoline engine compartments
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Fuses sold separately
Circuits: 4
Max Amperage: 100A per block, 30A per circuit
Max Voltage: 32V DC
Compact Size: 3.65"W x 1.3"H x 1.7"D

Additional Model #'s
70-5045-BSS
70-5045BSS
5045-BSS
5045BSS

UPC: 632085050450
