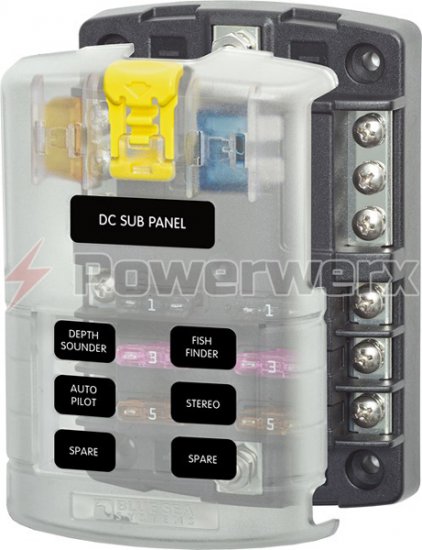

Quality fuse block accepts standard ATC/ATO fuses. Positive distribution bus with #8-32 stud. 6 circuit design. 100 Amp max per block, 30 Amp max per circuit. Includes storage for 2 spare fuses. Snap-in Cover. 3.32"W x 4.9"H x 1.52"D. Fuses not included. Positive distribution bus with #8-32 stud Can be used for 24-hour circuits Models available with or without a cover Cover satisfies ABYC/USCG requirements for insulation Incorporates an easy to open push button latch providing easy access to fuses Storage for two spare fuses, and recesses for labeled circuit identification Tin-plated copper buses and fuse clips Accepts ring or spade type terminals Accepts ATO and ATC fast acting blade fuses Voltage Maximum Operating 32V DC Amperage Maximum Operating (per circuit) 30 Amps Amperage Maximum Operating (per block) 100 Amps Screw Terminal #8-32 Screws with captive star lock washer Mounting #8 Screw (M4) Fuses sold separately. Labels not included Additional Model #'s 70-5025-BSS 70-5025BSS 5025-BSS 5025BSS UPC: 632085050252
