Data Sheet

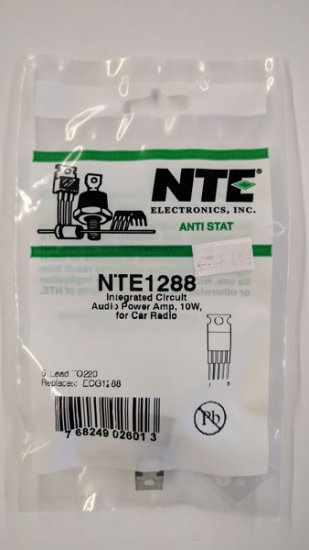

NTE1288
Integrated Circuit
Audio Power Amplifier, 10W
for Car Radio

Description:
The NTE1288 has improved performance with the same pin configuration as the NTE1232. The additional features of the NTE1232; very low number of external components, ease of assembly, space
and cost saving, are maintained. The device provides a high output current capability (up to 3.5A),
very low harmonic and cross distortion.

Complete safe operation is guaranteed due to protection against DC and AC short-circuit between
all pins and GND, thermal over-range, load dump voltage surge up to 40V, polarity inversion and fortuitous open ground.

Replaces:
ECG1288

Additional Model #'s
76-NTE1288
NTE1288

UPC: 768249026013
