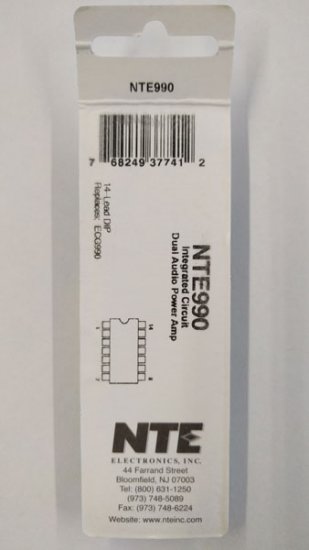

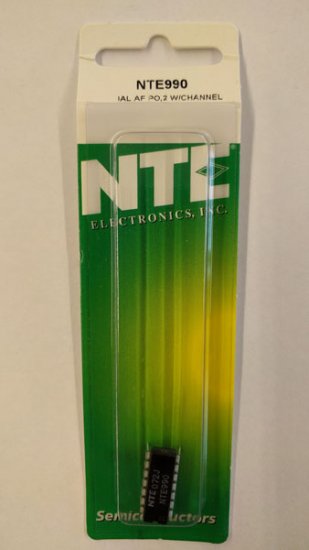

Data Sheet

NTE990
Integrated Circuit
Dual Audio Power Amplifier

Description:
The NTE990 is a monolithic dual power amplifier designed to deliver 2W/channel continuous into 8?
loads. The NTE990 is designed to operate with a low number of external components, and still provide flexibility for use in stereo phonographs, tape records and AM-FM stereo receivers, etc. Each power amplifier is biased from a common internal regulator to provide high power supply rejection, and output Q point centering. The NTE990 is internally compensated for all gains greater than 10.

Features:
2W/channel
-65 dB Ripple Rejection, Output Referred
-65 dB Channel Separation, Output Referred
Wide Supply Range: 6V to 24V
Very Low Cross-Over Distortion
Low Audio Band Noise
AC Short Circuit Protected
Internal Thermal Shutdown

Applications:
Multi-Channel Audio Systems
Stereo Phonographs
Tape Recorders and Players
AM-FM Radio Receivers
Servo Amplifiers
Intercom Systems
Automotive Products

Replaces:
ECG990

Additional Model #'s
76-NTE990
NTE990

UPC: 768249377412
