Drawing NC3MD-L-1

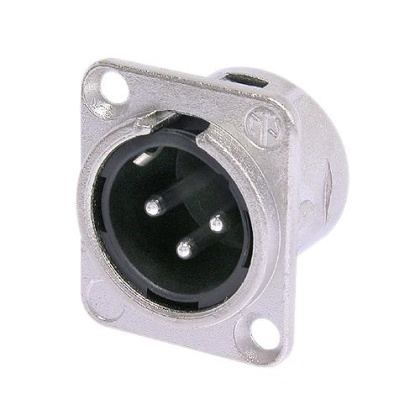

3 Pole Male Receptacle, Solder Contacts, Nickel Housing, Silver Contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Features & Benefits
Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Solder cups on 3 - 7 pole version
Technical Information
Product
Title: NC3MD-L-1
Connection Type: XLR
Gender: male
Electrical
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiring: Solder contacts
Locking device: Latch lock
Mounting direction: Front mounting
Chassis shape: D
Material
Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn35Pb2)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating:Nickel
Environmental
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Additional Model #'s
74-NC3MD-L-1
74-NC3MDL1
NC3MD-L-1
NC3MDL1
