Data Sheet

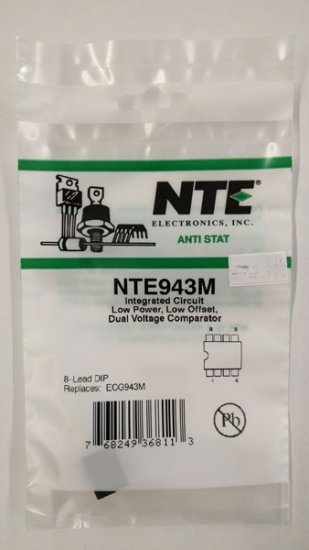

NTE943, NTE943M, & NTE943SM
Integrated Circuit
Low Power, Low Offset, Dual Voltage Comparator

Description:
The NTE943, NTE943M, and NTE943SM consist of two independent precision voltage comparators
with an offset voltage speciication as low as 2.0mV max for two comparators which were designed
specifically to operate from a single power supply over a wid range of voltages. Operation from split
power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

Application areas include limit comparators, simple analog to digital converters; pulse, squarewave
and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. These devices are designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies they will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.

Features:
Wide Single Supply
Volatge Range: 2.0V to 36V
Dual Supplies: ±1.0V to ±18V
Low Supply Current Drain (0.8mA) - Independent of Supply Voltage (1.0mW/Comparator at 5V)
Low Input Biasing Current: 25nA
Low Input Offset Current: ±5nA
Maximum Offset Voltage: ±3mV
Input Common-Mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Low Output Saturation Voltage: 240mV @ 4mA
Output Voltge Compatible with TTL, DTL, ECL, MOS, and CMOS Logic Sytems
Available in 3 Different Case Styles:
8-Lead Metal Can: NTE943
8-Lead Mini DIP: NTE943M
8-Lead SOIC (Surface Mount): NTE943SM

Replaces:
ECG943M

Additional Model #'s
76-NTE943M
NTE943M

UPC: 768249368113
