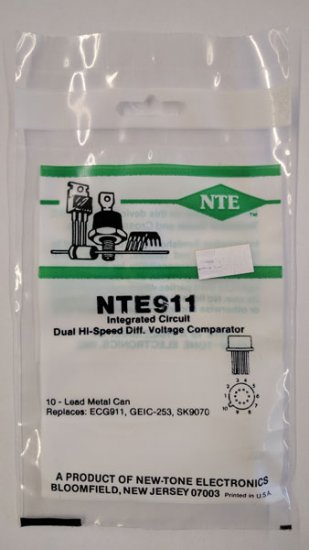

NTE911 IC, Dual Voltage Comparator, 10-Lead Can

Model: NTE911
Availability :  In Stock
  • NTE911 IC, Dual Voltage Comparator, 10-Lead Can
  • NTE911 IC, Dual Voltage Comparator, 10-Lead Can
  • NTE911 IC, Dual Voltage Comparator, 10-Lead Can
$8.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE911
Integrated Circuit
Dual Voltage Comparator

Description:
The NTE911 is a dual, differential voltage comparator in a 10-Lead Metal Can type package featuring
high accuracy, fast response times, large input voltage range, low power consumption and compatibility with practically all integrated logic forms. When used as a sense amplifier, the threshold voltage can be adjusted over a wide range, almost independent of the integrated circuit characteristics. Independent strobing of each comparator channel is provided, and pulse stretching on the output is easily accomplished. Other applications of the dual comparator include a window discriminator in pulse height detectors and a double-ended limit detector for automatic Go/No-Go test equipment.

Features:
Fast Response Time - 40ns Typical
5mV Maximum Offset Voltage
10µA Maximum Offset Current
Independent Comparator Strobing

Replaces:
ECG911, GEIC-253, SK9070

Additional Model #'s
76-NTE911
NTE911

UPC: 768249362319
