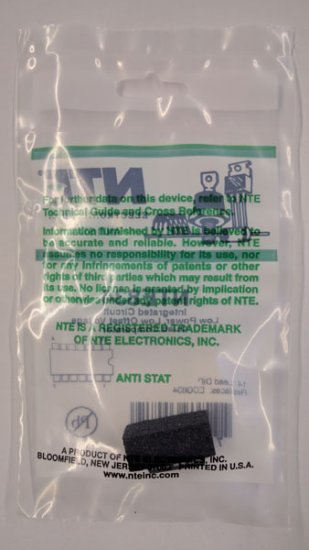

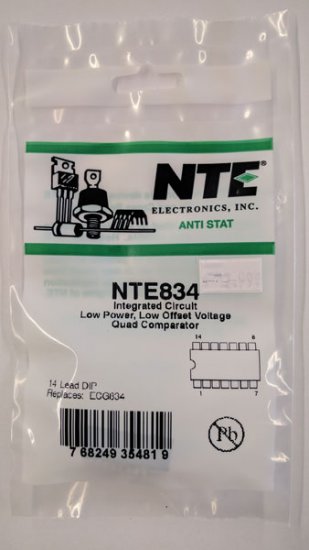

NTE834 IC, Low Power Low Offset Voltage Comparator, 14-Lead DIP

Model: NTE834
Availability : Out of Stock
  • NTE834 IC, Low Power Low Offset Voltage Comparator, 14-Lead DIP
  • NTE834 IC, Low Power Low Offset Voltage Comparator, 14-Lead DIP
  • NTE834 IC, Low Power Low Offset Voltage Comparator, 14-Lead DIP
$2.99
Current Reviews: 0 Add Your Review
 Sold Out

Data Sheet

NTE834 & NTE834SM
Integrated Circuit
Low Power Low Offset Voltage Comparator

Description:
The NTE834 and NTE834SM are precision voltage comparators designed to operate from a single
power supply over a wide range of voltages. Operation from split power supplies is also possible and
the low power supply current drain is independent of the magnitude of the power supply voltage.
These comparators also has a unique characteristic in that the input common-mode voltage range
includes GND, even though operated from a single power supply voltage.

Features:
Wide Single Supply Voltage Range: 2V to 36V
Very Low Supply Current Drain: 0.8mA Typ
Low Input Biasing Current: 25nA
Low Offset Voltage: ±3mV
Low Input Offset Current: ±5nA
Output Voltage Compatible with TTL, DTL, ECL, MOS, and CMOS Logic Systems
Available in Standard 14-Lead DIP (NTE834) and Surface Mount SOIC-14 (NTE834SM)

Applications:
Limit Comparators
Simple Analog to Digital Converters
Pulse, Squarewave, and Time Delay Generators

Replaces:
ECG834

Additional Model #'s
76-NTE834
NTE834

UPC: 768249354819
