Data Sheet

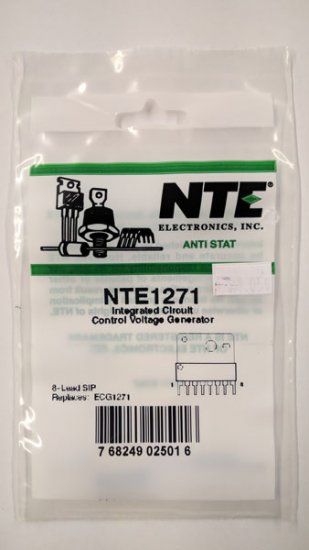

NTE1271
Integrated Circuit
Control Voltage Generator

Description:
The NTE1271 control voltage generator with three outputs is fabricated with bipolar linear technology.
Two alternately exchangeble outputs are provided for two stabilized output levels controlled by an
external signal. The NTE1271 is packaged in a 8-Lead SIP package with a heat radiation fin to allow
for large power dissipation.

Features:
No Need for External Components
Three Outputs @ 8.2V typ
Noise Protection Circuitry
Overload Current Protection and Thermal Protection Circuitry
Good Mountability
High Output Current: 200mA typical for VO2 output
100mA typical for VO0, VO1 outputs

Replaces:
ECG1271

Additional Model #'s
76-NTE1271
NTE1271

UPC: 768249025016
