Data Sheet

NTE610 thru NTE614
Voltage Variable Capacitance Diode
(Tuning Diode)

Description:
These diodes are designed for high volume requirements of FM Radio and TV tuning and AFC, general frequency control and tuning applications; providing solid-state reliability in replacement of mechanical tuning methods.

Features:
High Q with Guaranteed Minimum Values
Controlled and Uniform Tuning Ratio
Standard Capacitance Tolerance - 10%

Replaces:
ECG612, SK3325

Additional Model #'s
76-NTE612

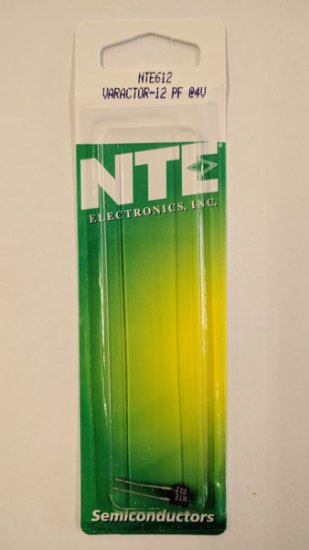

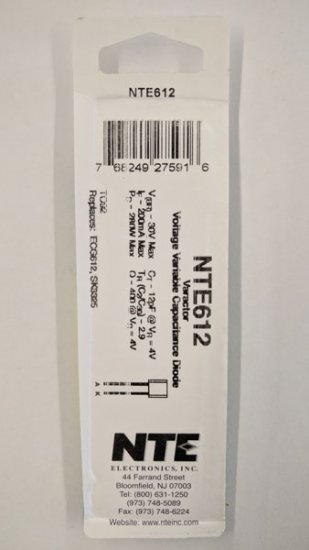

NTE612

UPC: 768249275916
