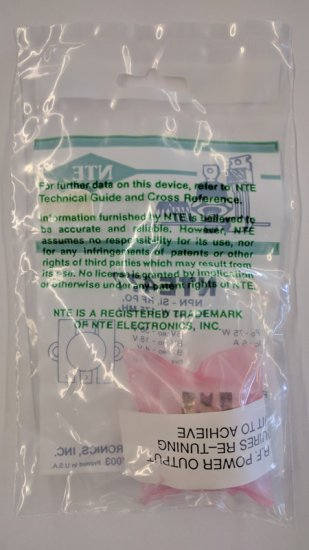

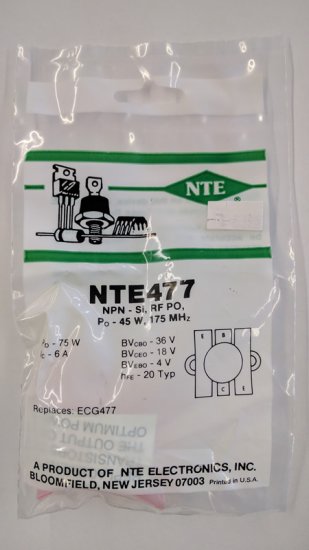

NTE477 T-NPN, Si, RF Power Output (Po 45W@175MHz)

Model: NTE477
Availability :  In Stock
  • NTE477 T-NPN, Si, RF Power Output (Po 45W@175MHz)
  • NTE477 T-NPN, Si, RF Power Output (Po 45W@175MHz)
  • NTE477 T-NPN, Si, RF Power Output (Po 45W@175MHz)
$109.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE477
Silicon NPN Transistor
RF Power Output

Description:
The NTE477 is a silicon NPN epitaxial planar type transistor designed for RF power amplifiers in VHF band mobile radio applications.

Features:
High power gain: Gpe ≥ 8.2dB @ VCC = 13.5V; VO = 40W; t = 175MHz
Emitter ballasted construction and gold metallization for high reliability, and good performances
Low thermal resistance ceramic package with flange
Ability of withstanding more than 20:1 load VSWR when operated at VCC = 15.2V,
PO = 40W, f = 175MHz, TC = 25°C

Applications:
30 to 35 watts output power amplifiers in VHF band mobile radio applications.

Replaces:
ECG477

Additional Model #'s
76-NTE477
NTE477

UPC: 768249172512
