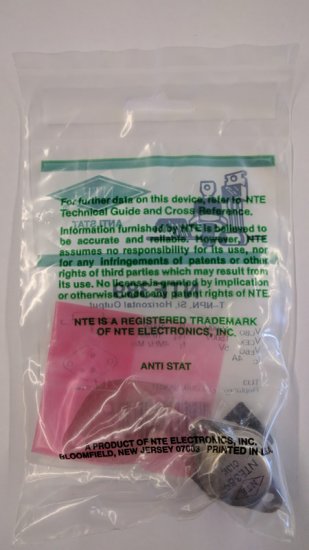

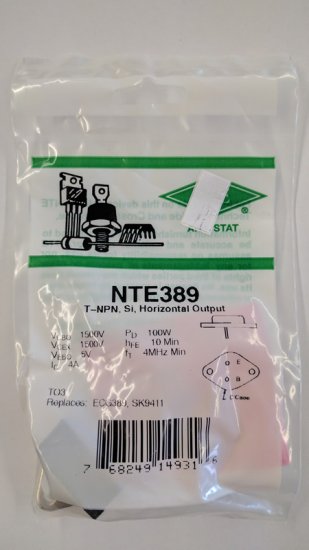

NTE389 T-NPN, Si, Horizontal Output

Model: NTE389
Availability :  In Stock
  • NTE389 T-NPN, Si, Horizontal Output
  • NTE389 T-NPN, Si, Horizontal Output
  • NTE389 T-NPN, Si, Horizontal Output
$10.01
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE389
Silicon NPN Transistor
Horizontal Output

Description:
The NTE389 is a high voltage silicon NPN power transistor in a TO3 type case designed for use in CRT horizontal deflection circuits.

Features:
Collector–Emitter Voltage: VCEX = 1500V
Glass Passivated Base-Collector Junction
Forward Bias Safe Operating Area @ 50µs = 20A, 300V
Switching Times with Inductive Loads: tf = 0.5µs (Typ) @ IC = 3A

Replaces:
ECG389, SK9411

Additional Model #'s
76-NTE389
NTE389

UPC: 768249149316
