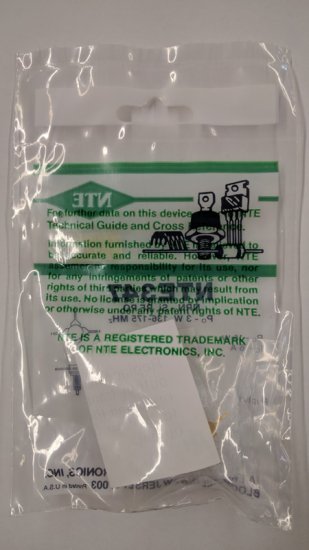

NTE347 T-NPN, Si, RF Power Output (PO 3W 136-175MHZ)

Model: NTE347
Availability :  In Stock
  • NTE347 T-NPN, Si, RF Power Output (PO 3W 136-175MHZ)
  • NTE347 T-NPN, Si, RF Power Output (PO 3W 136-175MHZ)
  • NTE347 T-NPN, Si, RF Power Output (PO 3W 136-175MHZ)
$34.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE347
Silicon NPN Transistor
RF Power Output
PO = 3W @ 175MHz

Description:
The NTE347 is designed for 13.6 volt, VHF large signal power amplifier applications required in military and industrial equipment operating to 240MHz.

Features:
Low lead inductance stripline package for easier design and increased broadband capability. Balanced Emitter Construction for increased Safe Operating Area. The NTE347 is designed to withstand an Open or Shorted Load at rated Output Power.
Specified 13.6 volt, 175MHz Characteristics
Output Power = 3.0 Watts
Minimum Gain = 8.2dB
Efficiency = 50%

Replaces:
ECG347

Additional Model #'s
76-NTE347
NTE347

UPC: 768249144212
