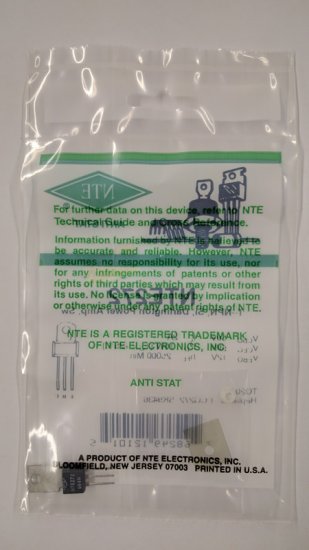

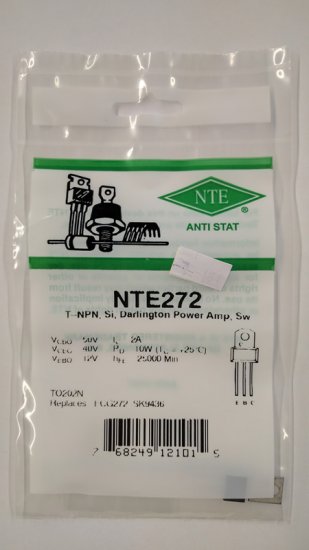

NTE272 T-NPN, Si, Darlington Power Amp (Compl to NTE273)

Model: NTE272
Availability :  In Stock
  • NTE272 T-NPN, Si, Darlington Power Amp (Compl to NTE273)
  • NTE272 T-NPN, Si, Darlington Power Amp (Compl to NTE273)
  • NTE272 T-NPN, Si, Darlington Power Amp (Compl to NTE273)
$32.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE272 (NPN) & NTE273 (PNP)
Silicon Darlington Complementary
Power Amplifiers

Description:
The NTE272 (NPN) and NTE273 (PNP) are silicon complementary Power Amplifiers in a TO202 type case designed for use in complementary amplifiers and driver applications.

Features:
High DC Current Gain:
hFE = 25,000 (Min) @ IC = 200mA
= 15,000 (Min) @ IC = 500mA
Collector-Emitter Breakdown Voltage:
V(BR)CES = 40V @ IC = 500mA
Low Collector−Emitter Saturation Voltage:
VCE(sat) = 1.5V @ IC = 1A
Monolithic Construction for High Reliability

Replaces:
ECG272, SK9436, TCG272

Additional Model #'s
76-NTE272
NTE272

UPC: 768249121015
