Data Sheet

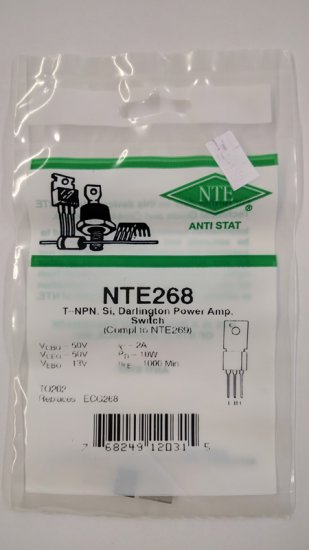

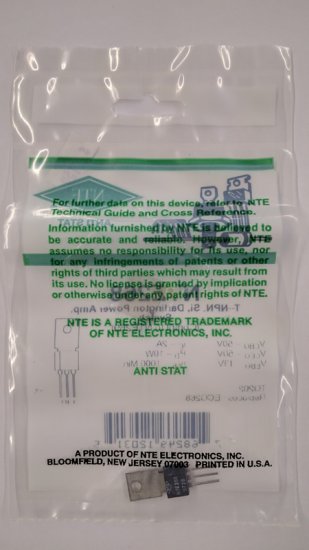

NTE268 (NPN) & NTE269 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier
Description:
The NTE268 (NPN) and NTE269 (PNP) are silicon complementary Darlington transistors in a TO202 type package designed for amplifier and driver applications where high gain is an essential requirement, low power lamp and relay drivers and power drivers for high-current applications such as volt-
age regulators.
Features:
Low Collector-Emitter Saturation Voltage: VCE(sat) = 1.5V Max @ IC = 1.5A
TO202 Type Package: 2W Free Air Dissipation @ TA = +25°C
Replaces:
ECG268, SK9255
Additional Model #'s
76-NTE268
NTE268
UPC: 768249120315
