Data Sheet

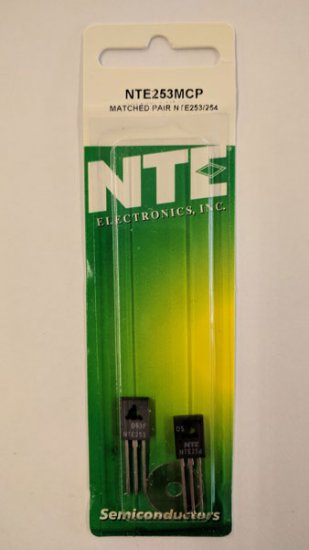

NTE253 (NPN) & NTE254 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier

Description:
The NTE253 (NPN) and NTE254 (PNP) are silicon complementary Darlington transistors in a TO126 type case designed for general-purpose amplifier and low-speed switching applications.

Features:
High DC Current Gain: hFE = 2000 (Typ) @ IC = 2A
Monolithic Construction with Built-In Base-Emitter Resistors to Limit Leakage Multiplication

Replaces:

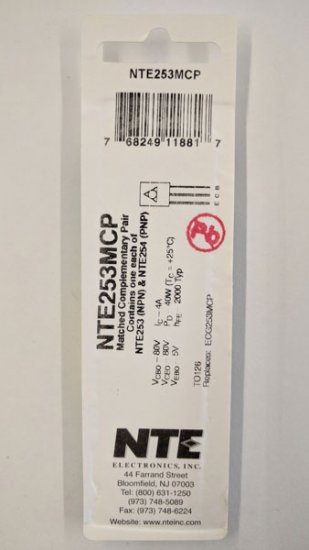

ECG253MCP

Additional Model #'s
76-NTE253MCP
NTE253MCP

UPC: 768249118817
