Data Sheet

NTE249 (NPN) & NTE250 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier

Description:
The NTE249 (NPN) and NTE250 (PNP) are silicon complementary Darlington transistors in a TO3 type case designed for use as output devices in complementary general purpose amplifier applications.

Features:
High DC Current Gain: hFE = 3500 Typ @ IC = 10A
Monolithic Construction with Built-In Base-Emitter Shunt Resistors

Replaces:
ECG250, TCG250

Additional Model #'s
76-NTE250

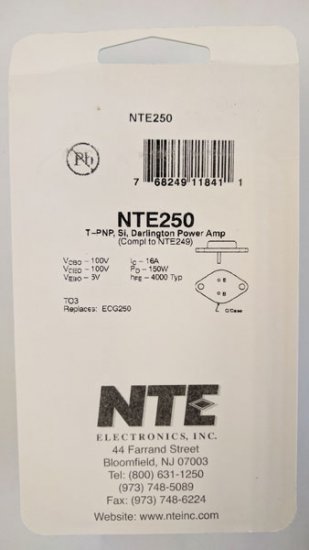

NTE250

UPC: 768249118411
