Data Sheet

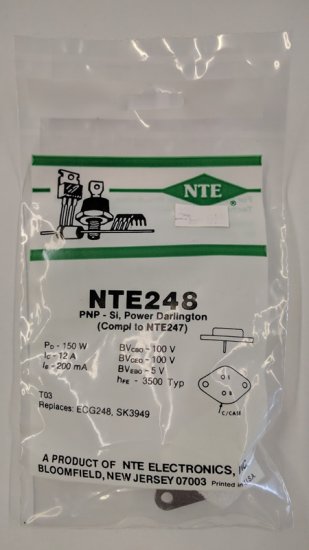

NTE247 (NPN) & NTE248 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier

Description:
The NTE247 (NPN) and NTE248 (PNP) are silicon complementary Darlington transistors in a TO3 type case designed for general-purpose amplifier and low-frequency switching applications.

Features:
High DC Current Gain: hFE = 3500 Typ @ IC = 5A
Collector-Emitter Sustaining Voltage: VCEO(sus) = 100V Min @ 100mA
Monolithic Construction with Built-In Base-Emitter Shunt Resistors

Replaces:
ECG248, SK3949

Additional Model #'s
76-NTE248
NTE248

UPC: 768249118114
