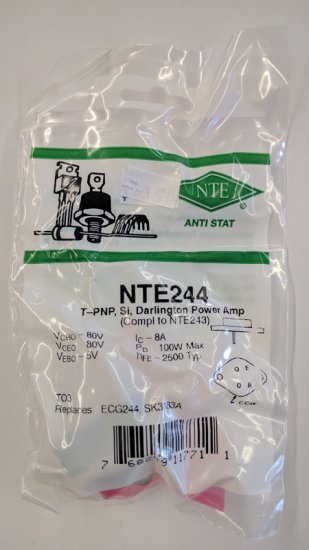

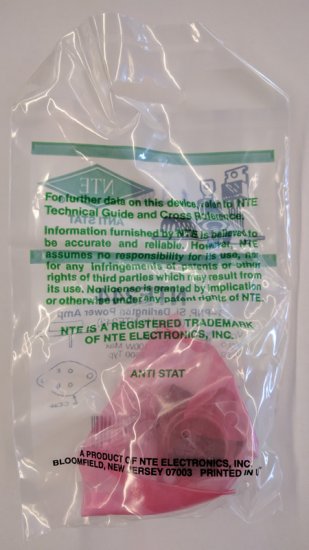

NTE244 T-PNP, Si, Darlington Power Amp (Compl to NTE243)

Model: NTE244
Availability :  In Stock
  • NTE244 T-PNP, Si, Darlington Power Amp (Compl to NTE243)
  • NTE244 T-PNP, Si, Darlington Power Amp (Compl to NTE243)
  • NTE244 T-PNP, Si, Darlington Power Amp (Compl to NTE243)
$5.99
Current Reviews: 0 Add Your Review
QTY :

Data Sheet

NTE243 (NPN) & NTE244 (PNP)
Silicon Complementary Transistors
Darlington Power Amplifier

Description:
The NTE243 (NPN) and NTE244 (PNP) are silicon complementary Darlington transistors in a TO3 type case designed for general-purpose amplifier and low-frequency switching applications.

Features:
High DC Current Gain: hFE = 3000 Typ @ IC = 4A
Collector-Emitter Sustaining Voltage: VCEO(sus) = 80V Min @ 100mA
Low Collector-Emitter Saturation Voltage:
VCE(sat) = 2V Max @ IC = 4A
= 3V Max @ IC = 8A
Monolithic Construction with Built-In Base-Emitter Shunt Resistors

Replaces:
ECG244, SK3183A

Additional Model #'s
76-NTE244
NTE244

UPC: 768249117711
