Data Sheet

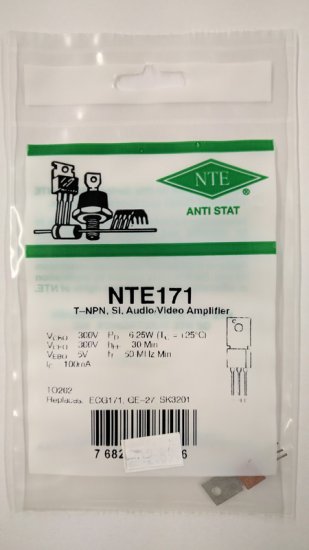

NTE171
Silicon NPN Transistor
Audio/Video Amplifier

Description:
The NTE171 is a silicon NPN transistor in a TO202 type case designed for high-voltage TV video and chroma output circuits, high-voltage linear amplifiers, and high-voltage transistor regulators.

Features:
High Collector-Emitter Breakdown Voltage Voltage: V(BR)CER = 300V @ IC = 1mA
Low Collector-Base Capacitance: Ccb = 3pF Max @ VCB = 20V

Replaces:
ECG171, GE-27, SK3201

Additional Model #'s
76-NTE171
NTE171

UPC: 768249070016
