Data Sheet

NTE916
Integrated Circuit
High Current, NPN Transistor Array,
Common Emitter

Description:

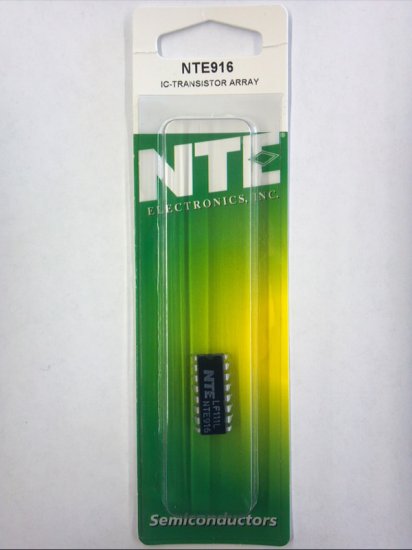

The NTE916 is a high current transistor array in a 16–Lead DIP type package consisting of seven silicon NPN transistors on a common monolithic substrate connected in a common–emitter configuration designed for directly driving seven–segment displays and light–emitting diodes (LED) displays. This device is also well suited for a variety of other drive applications including relay control and thyristor firing.

Features:

Seven Transistors Permit a Wide Range of Applications
High Collector Current: IC = 100mA Max
Low Collector–Emitter Saturation Voltage: VCE(sat) = 400mV Typ @ 50mA

Replaces:
ECG916

Additional Model #'s
76-NTE916
NTE916

UPC: 768249362913
