Data Sheet

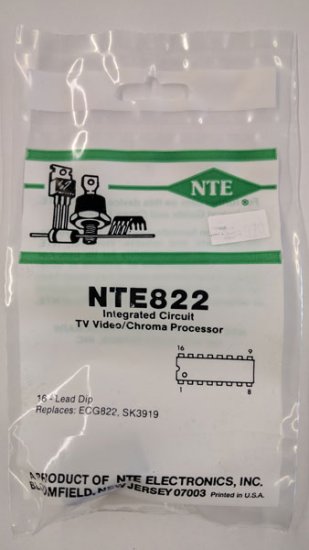

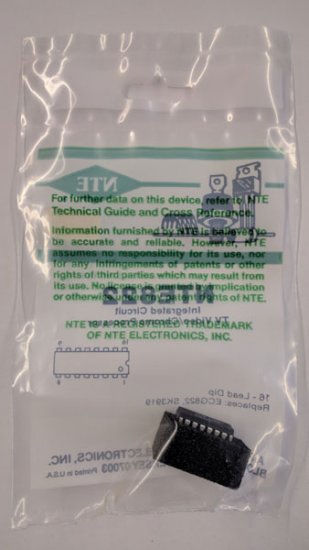

NTE822
Integrated Circuit
Video/Chroma Processor

Description:
The NTE822 is a monolithic silicon integrated circuit that performs the luminance processing functions
in color TV receivers. This circuit amplifies chroma signals, provides horizontal and vertical
blanking, and automatically controls contrast, brightness, peaking and black and chroma levels.

Features:
Automatic Black-Level Control
Automatic Controls for Contrast and Peaking
Automatic Color-Level Control
Horizontal and Vertical Blanking
Automatic Beam-Current Limiting
Positive or Negative Vertical Blanking Pulses
Internal Noise Protection for Automatic Functions

Replaces:
ECG822, SK3919

Additional Model #'s
76-NTE822
NTE822

UPC: 768249352419
