Data Sheet

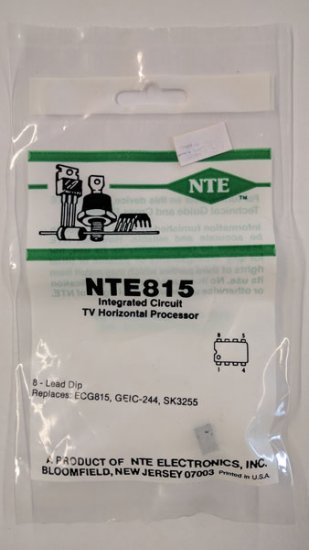

NTE815
Integrated Circuit
TV Horizontal Processor

Description:

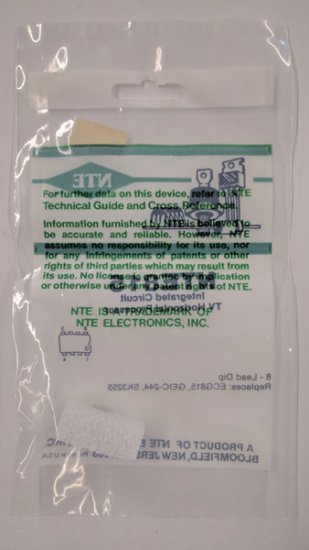

The NTE815 is an integrated circuit in an 8-Lead DIP type package containing low-level horizontal
sections including phase detector, oscillator and pre-driver-a device designed for use in all types of
television receivers.

Features:
Internal Shunt Regulator
Preset Hold Control Capability
±300Hz Typical Pull-In
Linear Balanced Phase Detector
Variable Output Duty Cycle for Driving Tube or Transistor
Low Thermal Frequency Drift
Small Static Phase Error
Adjustable dc Loop Gain

Replaces:
ECG815, GEIC, 244, SK3255

Additional Model #'s
76-NTE815
NTE815

UPC: 768249351511
