Data Sheet

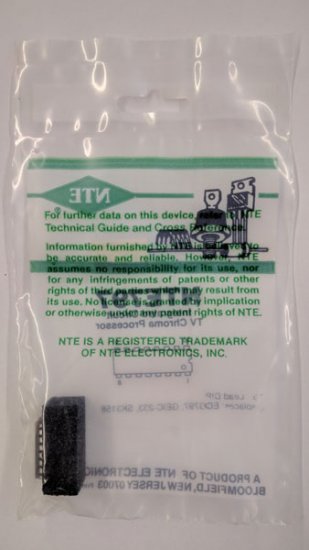

NTE797
Integrated Circuit
TV Chroma Processor

Features;
Phase-Locked Subcarrier Regeneration Utilizes Sample-And-Hold Techniques
Automatic Chrominance Control (ACC)/Killer Detector Employs Sample-And-Hold Techniques
Supplementary ACC with an Overload Detector to Prevent Oversaturation of this Picture Tube
Sinusoidal Subcarrier Output
Keyed Chroma Output
Emitter-Follower Buffered Outputs for Low Output Impedance
Linear DC Saturation Control

Replaces:
ECG797, GEIC-233, SK3158

Additional Model #'s
76-NTE797
NTE797
