Manual/Spec Sheet

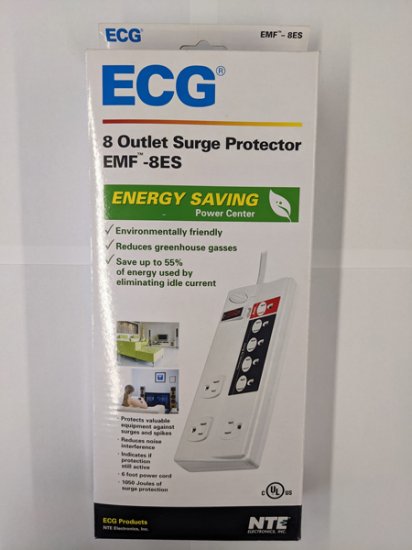

This environmentally friendly, 8 outlet Surge Protector saves up to 55% of energy used by eliminating idle current! EMF-8ES features one master outlet that controls four connected outlets, and also has three separate transformer spaced outlets as well. Plug your computer or television into the master outlet and plug everything else that you want to save energy into the four “connected by master” outlets. These four “connected by master” outlets turn on or off via the master outlet. This allows you to save energy and also helps to reduce greenhouse gasses!
SPECIFICATIONS
Electrical rating:.............................125 V, 60 Hz, 15 A, 1875 W
Joule rating: ....................................1050 J
Max. peak pulse current:...........19,500 A
Max. surge clamping voltage: ...400 V (L - N, L - G, N - G)
Max. surge pulse voltage:.........6000 V
Response time: .............................faster than 1 nanosecond
EMI / RFI noise rejection: ..........up to 20 dB from 150 KHz
to 30 MHz
Overload protection: ...................125 V, 15 A circuit breaker
Additional Model #'s
73-EMF-8ES
73-EMF8ES
EMF-8ES
EMF8ES
UPC: 768249286042
