Data Sheet

Current Rating: 50mA@ 125VDC
Initial Contact Resistance: 100 Meg ohm (Max.)
Insulation Resistance: 100 Meg ohm (Min.) @ 500 VDC
Dielectric Strength: 250V AC/ 1 minute
Contact Material: Phosphor Bronze w/Silver Cladding
Terminal Material: Brass with Silver Cladding

Part No. Housing Type Action Terminal
30-14411 6 x 6mm - 4.5mm H. SPST Off-(On) Through Hole Mt.
30-14412 6 x 6mm - 7.0mm H. SPST Off-(On) Surface Mt.
30-14414 6 x 6mm - 7.0mm H. SPST Off-(On) Through Hole Mt.
30-14415 6 x 6mm - 9.5mm H. SPST Off-(On) Surface Mt.
30-14418 6 x 6mm - 11.8mm H. SPST Off-(On) Through Hole Mt. Right Angle

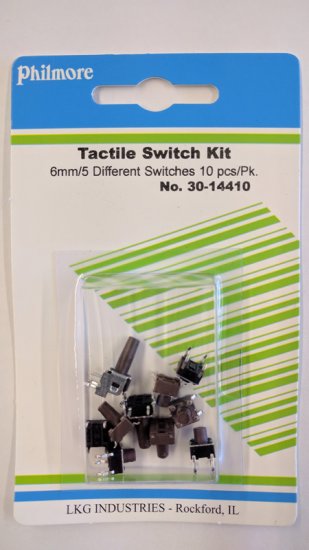

Additional Model #'s
75-30-14410
75-3014410
30-14410
3014410

UPC: 038975344102
