Data Sheet

12V Lighted Miniature Pushbutton Switch

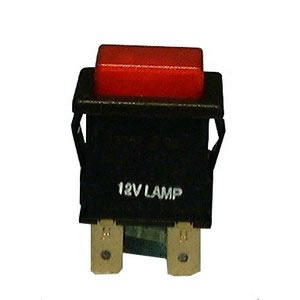

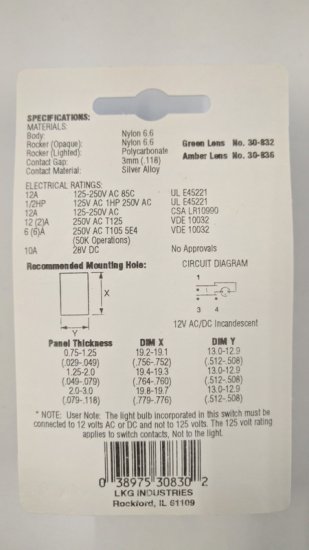

Electrical Ratings :
12A 125-250V AC 85C UL E45221
1/2HP 125V AC 1HP 250V AC UL E45221
12A 125-250V AC CSA LR10990
12 (2)A 250V AC T125 VDE 10032
6 (6)A 250V AC T105 5E4 VDE 10032
(50K Operations)
10A 28V DC No Approvals

Materials:
Body: Nylon 66
Rocker (Opaque): Nylon 66
Rocker (Lighted): Polycarbonate
Contact Gap: 3mm (.118)
Contact Material: Silver Alloy

NOTE: User Note: The light bulb incorporated in this switch must be connected to 12 volts AC or DC and NOT to 125 volts. The 125 volt rating applies to switch contacts, NOT to the light.

Additional Model #'s
75-30-830
75-30830
30-830
30830

UPC: 038975308302
