Data Sheet

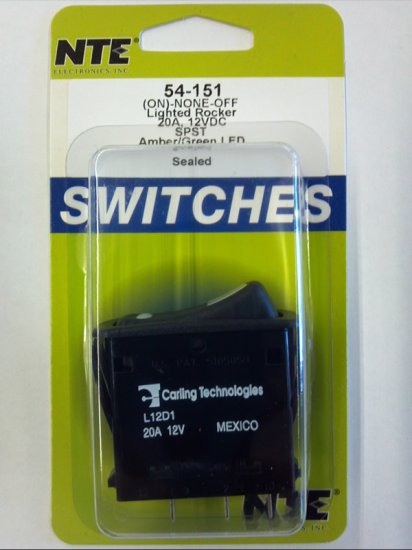

ROCKER SWITCH WATERPROOF ILLUMINATED
SPST 20A (ON)-NONE-OFF 12V GREEN AND AMBER LED 0.250" QC TERMINALS

Specifications:
Current Rating: 20A 12VDC,
Lamp Voltage: 12V LED (DC)
Insulation Resistance: 50 Megohms
Dielectric Strength:
Between Pole to Pole: 1250 VRMS
Between Live Parts & Accessible Surfaces: 3750 VRMS
Temperature Rating: -40 to +185 F (-40 to +85 C)
Electrical Life: 100,000 cycles maintained
Electrical Life: 50,000 cycles momentary at rated voltage & current
Mechanical Life: 250,000 cycles min.
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: 1.734" (44.04mm) x 0.867" (22.02mm)

Additional Model #'s
75-54-151
75-54151
54-151
54151

UPC: 768249167143
