Data Sheet
ROCKER SWITCH WATERRPOOF ILLUMINATED
SPST 21A ON-NONE-OFF GREEN 12V LED LAMP .250 QC TERMINALS
Specifications
Current Rating: 21A 14VDC
Lamp Voltage: 110V Neon (AC) & 12V LED (DC)
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: +32 to +149 F (0 to +65 C)
Electrical Life: 10,000 cycles
Mechanical Life: 50,000 cycles at full load
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: See Table 1
Additional Model #'s
75-54-233W
75-54233W
54-233W
54233W

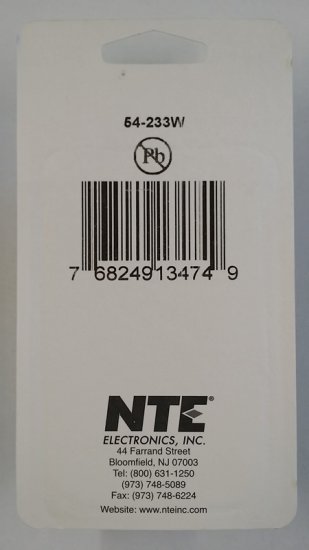

UPC: 768249134749
