Data Sheet

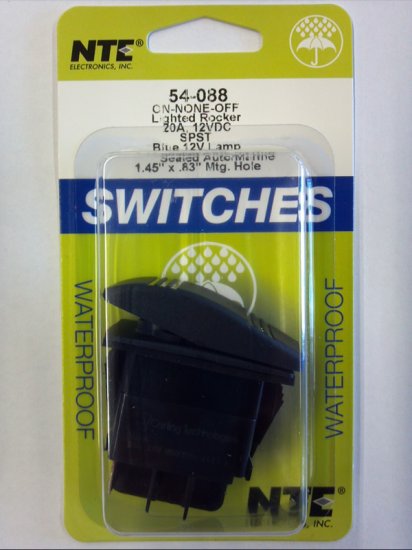

ROCKER SWITCH ILLUMINATED SNAP-IN
SPST 20A 12VDC ON-NONE-OFF W/BLUE LENS 0.250" QUICK CONN TERM

Features:
IP66/IP68 Certified
UL1500 Recognized - Ignition Protection for Marine Use
Sealed for Auto/Marine applications
Salt Spray Resistant
Able to Withstand -40 to +85 C Temperature

Specifications:
Current Rating: 20A 12VDC
Lamp Voltage: 12V Incandescent
Insulation Resistance: 50 Megohms (min.)
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -40 to +185 F -40 to +85 C)
Electrical Life: 50,000 to 100,000 cycles circuit dependent
Mechanical Life: 150,000 cycles
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: 1.450" (36.83mm) x 0.830" (21.08mm)

Additional Model #'s
75-54-088
75-54088
54-088
54088

UPC: 768249074144
