Data Sheet

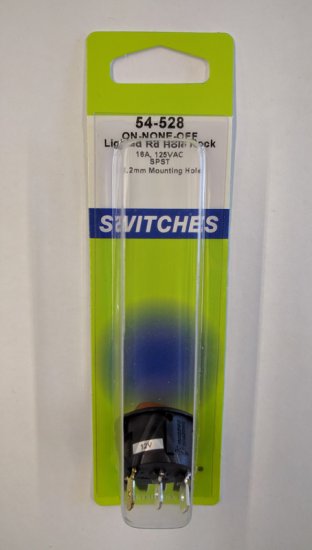

ROCKER SWITCH ILLUMINATED ROUND HOLE SNAP-IN
SPST 10A 250VAC ON-NONE-OFF AMBER 12VDC LED LAMP 0.187" QC TABS

Specifications:
Current Rating: 16A 125VAC, 10A 250VAC
Lamp Voltage: 110V (AC) Neon, 12V (DC) Incandescent
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -4 to +149 F (-20 to +65 C)
Electrical Life: 6000 cycles (min.)
Mechanical Life: 100,000 cycles (min.)
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: 0.795" (20.2mm)

Similar to:
Electronic Resources SW117Y
Philmore 30-16123

Additional Model #'s
75-54-528
75-54528
54-528
54528

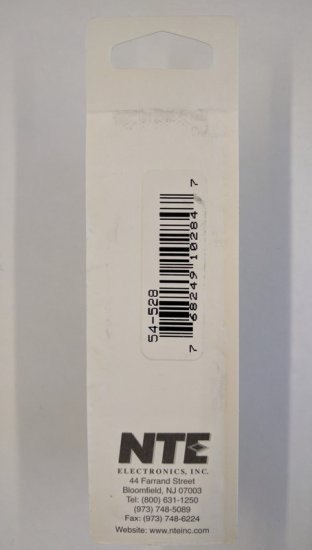

UPC: 768249102847
