Data Sheet

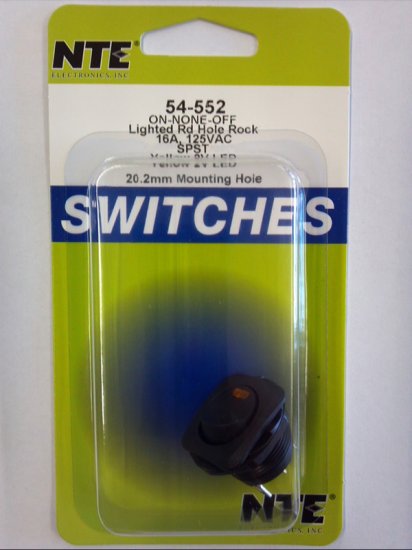

ROCKER SWITCH ILLUMINATED ROUND HOLE
SPST ON-NONE-OFF 16A 125VAC AMBER LED 0.187" TAB TERMINALS

Specifications:
Current Rating: 16A 125VAC, 10A 250VAC
Lamp Voltage: 3V LED
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -4 to +149 F (-20 to +65 C)
Electrical Life: 6000 cycles (min.)
Mechanical Life: 100,000 cycles (min.)
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: 0.795" (20.2mm)

Additional Model #'s
75-54-552
75-54552
54-552
54552

UPC: 768249105244
