Data Sheet

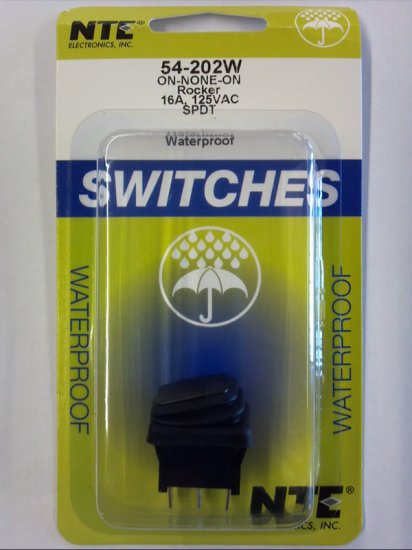

ROCKER SWITCH WATERPROOF
SPDT 16A ON-NONE-ON 0.187: QC TERMINALS

Specifications
Current Rating: 16A 125VAC 1/3 HP, 10A 250VAC 1/2 HP
Lamp Voltage: 110V Neon (AC) & 12V LED (DC)
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1000V RMS (min.)
Temperature Rating: +32 to +185 F (0 to +85 C)
Electrical Life: 10,000 cycles
Mechanical Life: 50,000 cycles at full load
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: See Table 1

Additional Model #'s
75-54-202W
75-54202W
54-202W
54202W

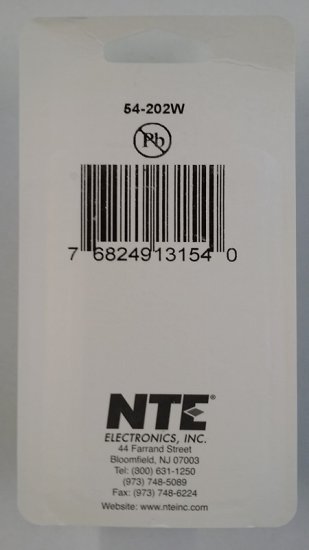

UPC: 768249131540
