Data Sheet

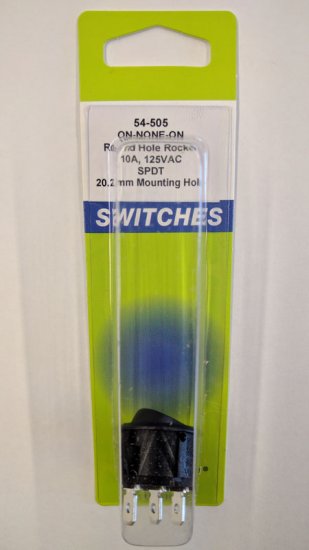

ROCKER SWITCH ROUND HOLE SPDT ON-NONE-ON 16A 125VAC
NO LEGEND 0.795" MOUNTING HOLE 0.187" QC TAB

Specifications:
Current Rating: 16A 125VAC, 10A 250VAC
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: -4 to +149 F (-20 to +65 C)
Electrical Life: 6000 cycles (min.)
Mechanical Life: 100,000 cycles (min.)
Terminal Type: 0.187” Tab Q.C.
Mounting Hole: 0.795" (20.2mm)

Additional Model #'s
75-54-505
75-54505
54-505
54505

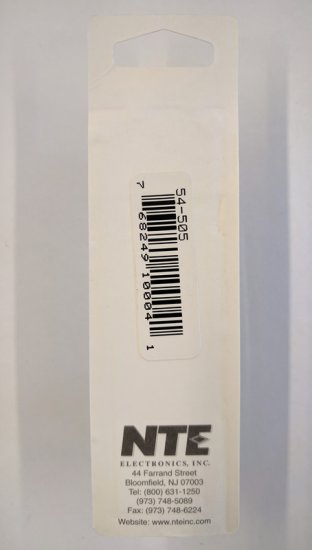

UPC: 768249100041
