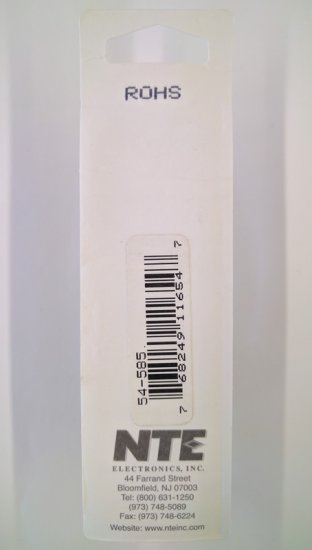

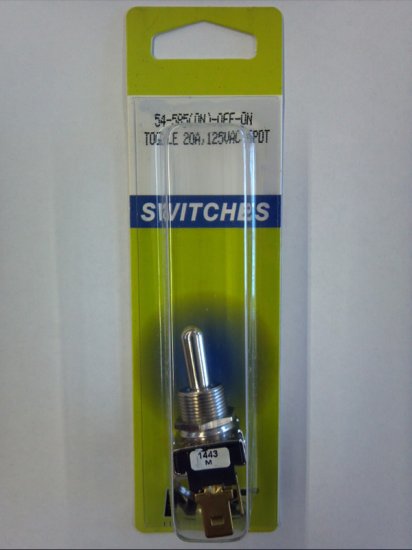

Bat Handle Toggle Switch SPDT (On)-Off-On 125V 20A

Model: 54-585
Availability : Out of Stock
  • Bat Handle Toggle Switch SPDT (On)-Off-On 125V 20A
  • Bat Handle Toggle Switch SPDT (On)-Off-On 125V 20A
  • Bat Handle Toggle Switch SPDT (On)-Off-On 125V 20A
$7.99
Current Reviews: 0 Add Your Review
 Sold Out

Data Sheet

SWITCH BAT HANDLE TOGGLE SPDT (ON)-OFF-ON 20A 125VAC
0.250" QC TERMINAL 0.500" MOUNTING HOLE

Features:
Slow-Make/Slow-Break Butt Contact
1 HP, 125-250VAC

Specifications:
Current Rating: 20A 125VAC, 10A 250VAC, 1 HP 125-250VAC
Insulation Resistance: 109 ohms (min.)
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: +14 to +149 F (-10 to +65 C)
Electrical Life: 10,000 cycles (min.) at full load
Mechanical Life: 30,000 cycles (min.)
Terminal Type: Refer to Diag. No. in Table
Mounting Hole: 0.500" (12.7mm)

Additional Model #'s
75-54-585
75-54585
54-585
54585

UPC: 768249116547
