Data Sheet

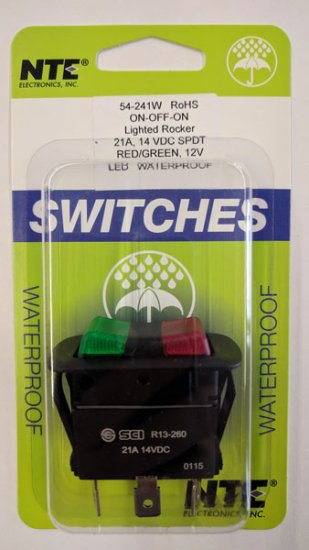

ROCKER SWITCH WATERPROOF ILLUMINATED
SPDT 21A ON-NONE-ON RED/GREEN 12V LED LAMP 0.250" QC TERMINALS

Specifications
Current Rating: 21A 14VDC
Lamp Voltage: 110V Neon (AC) & 12V LED (DC)
Insulation Resistance: 100 Megohms (min.) at 500VDC
Dielectric Strength: 1500V RMS (min.)
Temperature Rating: +32 to +149 F (0 to +65 C)
Electrical Life: 10,000 cycles
Mechanical Life: 50,000 cycles at full load
Terminal Type: 0.250” Tab Q.C.
Mounting Hole: See Table 1

Additional Model #'s
75-54-241W
75-54241W
54-241W
54241W

UPC: 768249135548
